Diamond Spiral Belt

€0,00

Brand

KGS

Length (mm)

Diameter (mm)

Ø15

Ø20

Ø22

Ø25

Ø30

Ø45

Ø50

Grit

BK-120

BL-1500

GN-60

RD-200

YE-400

Pattern

Flexis

Clear

SKU: N/A Categories: Flexible Diamond Abrasives, Diamond Grinding & Polishing Discs

Description
Additional information

Description

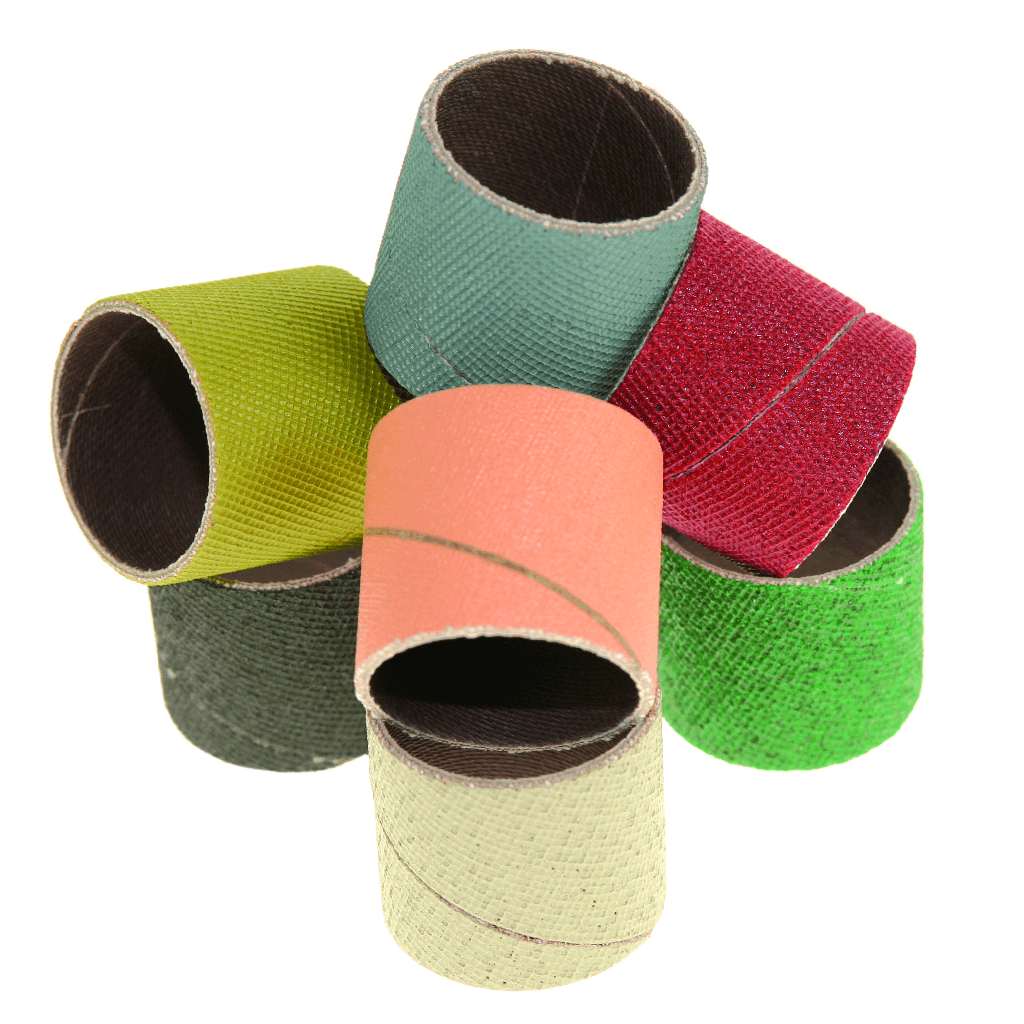

Diamond spiral belts for grinding inner radii, curved surfaces and hard-to-reach areas. They are used with pneumatic or electric tools in technical component finishing.

Additional information

Weight	30 g
Dimensions	30 mm
Brand	KGS
Use	Straight Grinding Machine, Automatic Machines
Application	Seaming, Surface Finishing, Polishing, Grinding
Material	Hard Metals, Glass, Natural Stones, Granite, Composite, Marble, Porcelain, Ceramic
Length (mm)	30, 40, 42, 20, 25
Diameter (mm)	Ø45, Ø50, Ø15, Ø20, Ø22, Ø25, Ø30
Grit	YE-400, BK-120, BL-1500, GN-60, RD-200
Pattern	FlexisKGS Flexis® Professional standard dot pattern range of highly flexible diamond abrasives for grinding and finishing. This pattern has a high temperature resistance, due to a superior heat dissipation, which makes it outstanding in p erformance. It is available in a variety of product shapes with different backers and patterns for numerous applications. It is available in metal & resin bond. KGS Flexis® 21: Metal bond - +/- 2 mm ø per dot, 16 dots / cm2, coarse grits, extra flexibility, aggressive cutting action, improved coolant flow, increased swarf removal. KGS Flexis® 18: Metal bond - +/- 0,7 mm ø per dot,120 dots / cm2, medium to fine grits, fine finishes.
